Pig Handling Systems

You are here : Kılavuz Makina > Projeler > Pig Handling Systems →

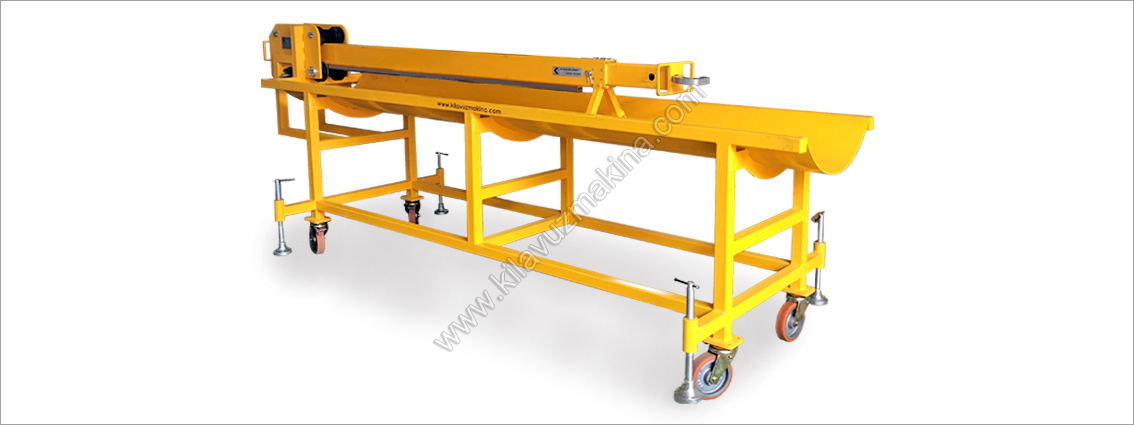

PIG TROLLEY

Mobile handling tray and trolley to aid loading and unloading of utility (cleaning) pigs to/from Pig Launcher / Pig Receiver. These systems help you to handle, load, and unload the pigs with/without using man power and minimize the work accidents, provide safety and convenience of operation conditions. Trolleys can be designed to suit intelligent pigging size requirements as well. Cable Winches/boom attached to the trolley for pig retrieval (pig receiver) and hydraulic / pneumatic / manual push rod for loading pigs into the pig launcher, appropriately sized for the required duty loads. The height of the pig loading/Receiver major barrel to facilitate smooth transition during loading/unloading procedures. Each trolley system is designed and manufactured to meet the requirements of each client..

FEATURES OF PRODUCTS

Employing a safe and effective means of handling Pipeline Pigs as they are loaded into Pig Launchers and unloaded from Pig Receivers
Robust construction
Hydralic height adjustment (optional)
Polyurethane lined cradle (optional)
Safety locking mechanisms
Site-specific and Project specific, government legislated, international safety requirements
Type of Pig Launchers and Receivers installed i.e. Process or Intelligent
Type of Pigs being utilized i.e. Mechanical Pigs, Intelligent Pigs, Foam Pigs etc.
Size & Weight of the Pipeline Pigs being utilized
Volatility of products being transported through the pipeline system

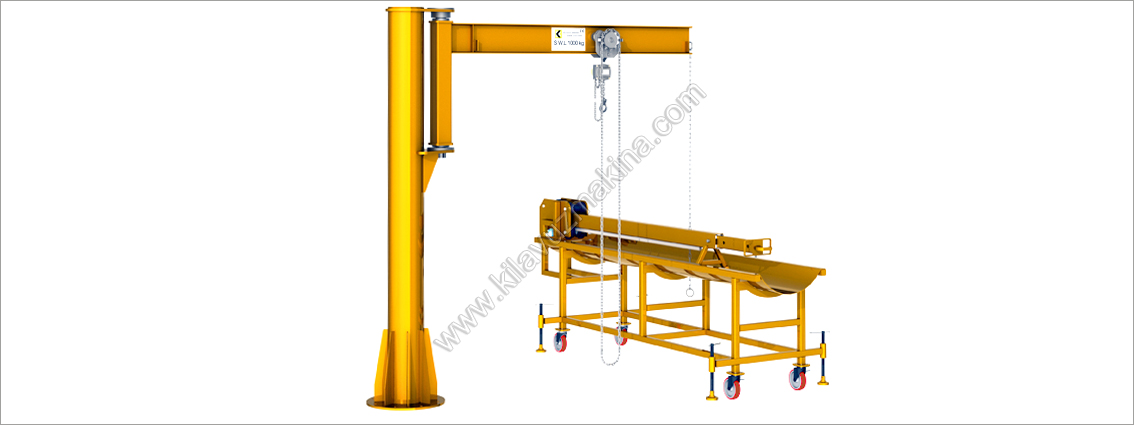

PIG TRAP JIB CRANE

Crane for lifting the pigs onto and from the trolley. The crane is suitable for handling intelligent and cleaning (utility) pigs and meet the duty class, load lifts and load lift height, cross travel and swiveling requirements as specified in the project specification. The Fixed-column jib crane consists of a column device, a rotary device, a swing arm device and a chain electric hoist. Fixed-column jib crane with a high reliability of the chain hoist is particularly suitable for short-distance, frequent use, intensive lifting operations, with high efficiency, energy saving, save trouble, small footprint, easy operation and maintenance and so on. Each pig crane system is designed and manufactured to meet the requirements of each client.

FEATURES OF PRODUCTS

Providing safe and effective handling of different kind pigging tools
360° rotation with hand or motorized (optional) hoists
Robust construction
Project specific, government legislated, international safety requirements
Manufactured from Carbon Steel or Stainless Steel as per preference
Can be supplied for multiple pig sizes utilizing adaptor supports and trays
Volatility of products transferred
Type of Pig Launchers and Receivers installed for Process or Intelligent pig devices
Type of Pigs being utilized such as Mechanical Pigs, Intelligent Pigs, Foam Pigs etc.
